Two Sparsities Are Better Than One: Unlocking the Performance Benefits of Sparse-Sparse Networks

Combine weight sparsity and activation sparsity

Table of Contents

• Two Sparsities Are Better Than One: Unlocking the Performance Benefits of Sparse-Sparse Networks
  • Method
    • sparse weight and dense activation
    • sparse weight and sparse activation

Method

sparse weight and dense activation

• a) Combine: multiple sparse weight structures are overlaid to form a single dense entity. This is done offline as a preprocessing step.
• (b) Multiply: each element of the activation is multiplied by the corresponding weight elements in the dense entity (Hadamard product).
• (c) Route: the appropriate element-wise products are routed separately for each output.
• (d) Sum: routed products are aggregated and summed to form a separate result for each sparse entity.

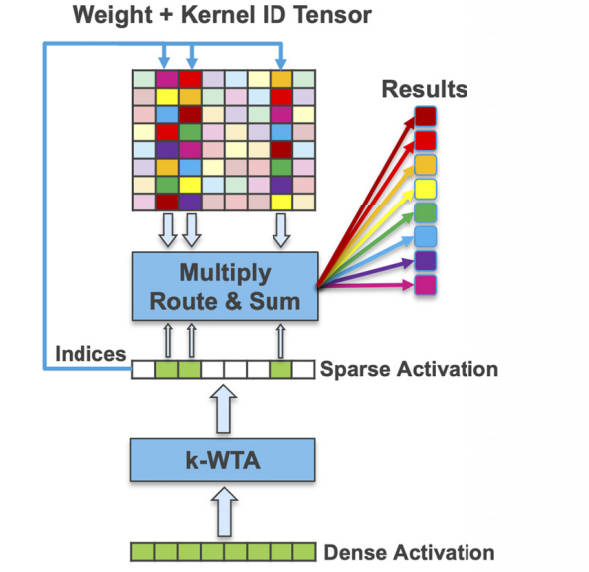

sparse weight and sparse activation

• a) Combine: multiple sparse weight structures are overlaid to form a single dense structure. This is done offline as a preprocessing step.
• (b) Select: a k-WTA component is used to determine the top-k activations and their indices.
• (c) Multiply: each non-zero activation is multiplied by the corresponding weight elements in the dense structure (Hadamard product).
• (d) Route: the appropriate element-wise products are routed separately for each output.
• (e) Sum: routed products are aggregated and summed to form a separate result for each sparse matrix.
