Mixture-of-Depths: Dynamically allocating compute in transformer-based language models
Abstract
Transformer-based language models spread FLOPs uniformly across input sequences. In this work we demonstrate that transformers can instead learn to dynamically allocate FLOPs (or compute) to specific positions in a sequence, optimising the allocation along the sequence for different layers across the model depth. Our method enforces a total compute budget by capping the number of tokens () that can participate in the self-attention and MLP computations at a given layer. The tokens to be processed are determined by the network using a top- routing mechanism. Since is defined a priori, this simple procedure uses a static computation graph with known tensor sizes, unlike other conditional computation techniques. Nevertheless, since the identities of the tokens are fluid, this method can expend FLOPs non-uniformly across the time and model depth dimensions. Thus, compute expenditure is entirely predictable in sum total, but dynamic and context-sensitive at the token-level. Not only do models trained in this way learn to dynamically allocate compute, they do so efficiently. These models match baseline performance for equivalent FLOPS and wall-clock times to train, but require a fraction of the FLOPs per forward pass, and can be upwards of 50\% faster to step during post-training sampling.
Method
Defining a compute budget
假设一共有T个tokens输入到transformer中进行运算,此时的compute budget则为T. MoE方法由于有多个experts,且回选择其中一个expert进行运算,所以平均的compute budget也约为T。
对于MoD来说,由于这个方法会跳过一些block,所以最终的compute budget会小于T。假设,定义某一个block的compute budget为,那么这个block中的self-attention的flops会由之前的变为,也就是变为了原来的25%。同理,对于MLP,则由原来的变为,即原来的50%。
Routing schemes
Routing的方式可以有以下几种选择 - 随机route,类似dropout,对performance影响很大 - learned routing,证明是比随机routing更好的方法 - token-choice routing - token可以选择合适的path,但是需要引入balancing loss,不然所有的token选择的path容易趋向与一致 - 由于没有强制的约束,token-choice routing会导致load unbalance - expert-choice routing - 约束每个path有top-k的token来选择,可以保证load balance - 但是会导致某些token实际计算量比最优需求高或者低。

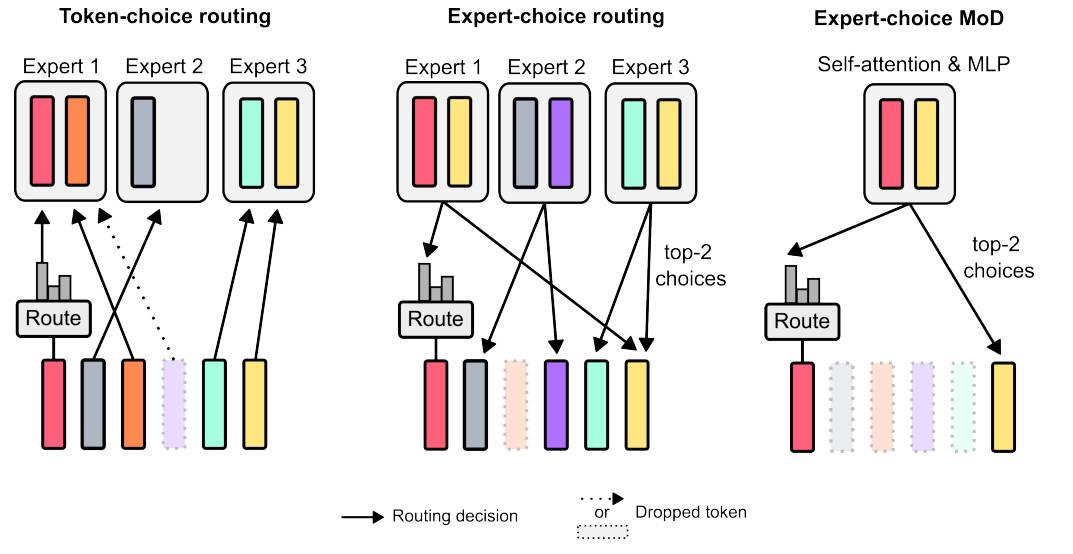

前两个图是以MoE为例,第三个图则是MoD routing的方法。MoE中有多个expert,token-choice每个token可以选择自己的expert,如左1途中虚线所示,如果expert1被选择的次数过多,超过了设置的capacity,则只能把这个token直接扔掉。中间图则采用了expert-choice 方式,每个expert对应两个token,由于有多个experts,所以某些token可能会有多个expert,某些token则可能一个expert都没有,相当于不参与这个block运算。右图则是对MoD的routing,选择只有两种,要么参与运算,要么不参与运算,所以top-2的token会参与这个block的运算,其他tokens则会直接跳过这个block的运算。
- 最终,论文选择expert-choice routing,具体原因为:
- 不需要增加balancing loss,既可以满足load balance
- Top-k的方法可以找到最需要参与运算的tokens,其他tokens则选择跳过运算
- 选择只有两种,计算或者跳过计算,top-k的方式可以很好的实现这个选择

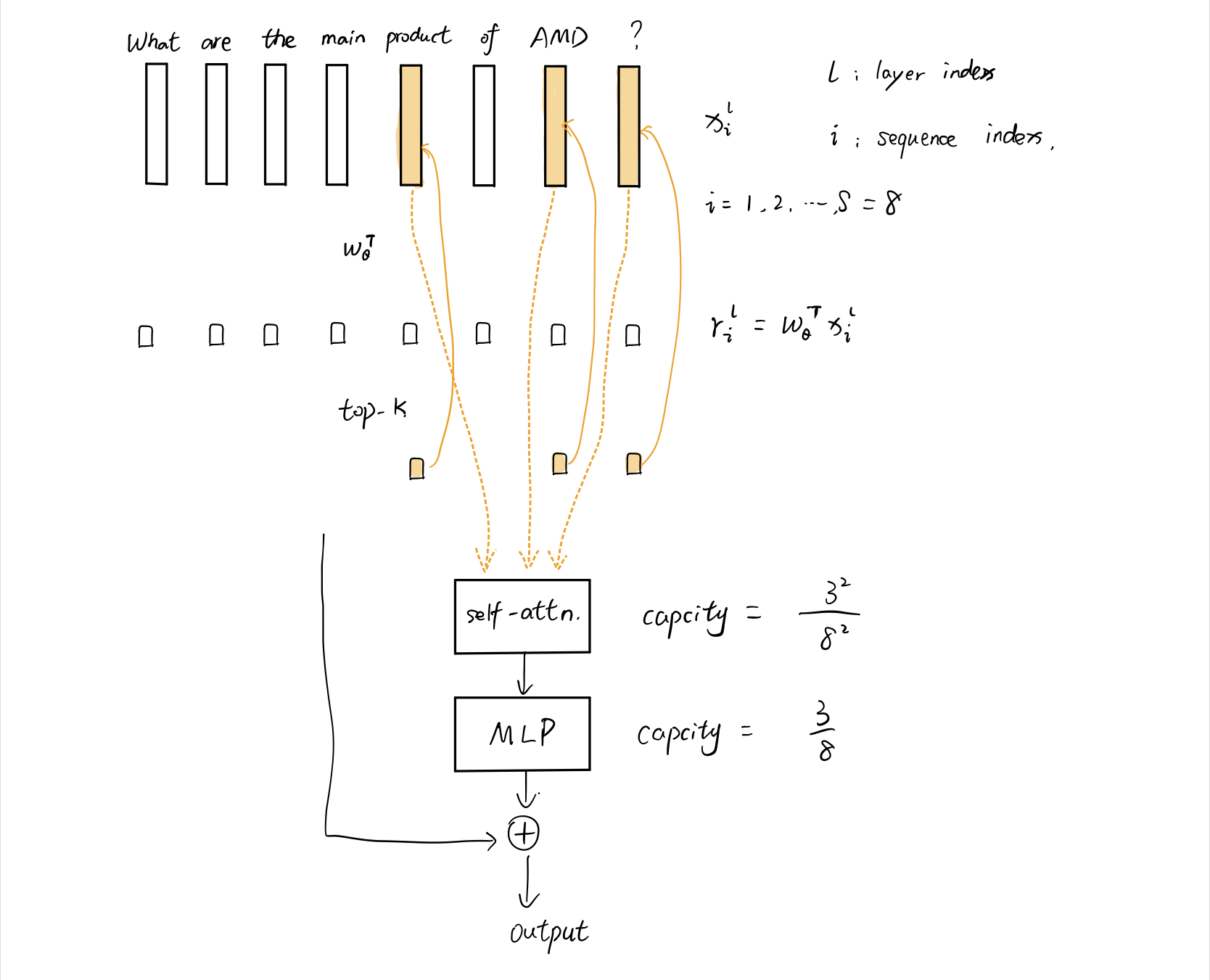

Routing implementation
可以看到,选择top-k的token embedding进行运算,可以有效的减少compute budget
需要注意的是,这里的block的输出增加了与作为权重。
Non-causal problem during sampling
在自回归sampling时,确定这个token是否在top-k中,需要与未来的token进行比较,但是无法获取未来的token,导致因果逻辑混乱。论文中给出了两个解决方法: - A simple auxiliary loss - 使用binary cross-entropy loss来区分每个token的是否属于topk - A small auxiliary MLP predictor - 相当于second router,用于预测是否属于topk
Training
Training部分所有的超参数保持不变,只修改了layer number,heads和embedding size等
Results

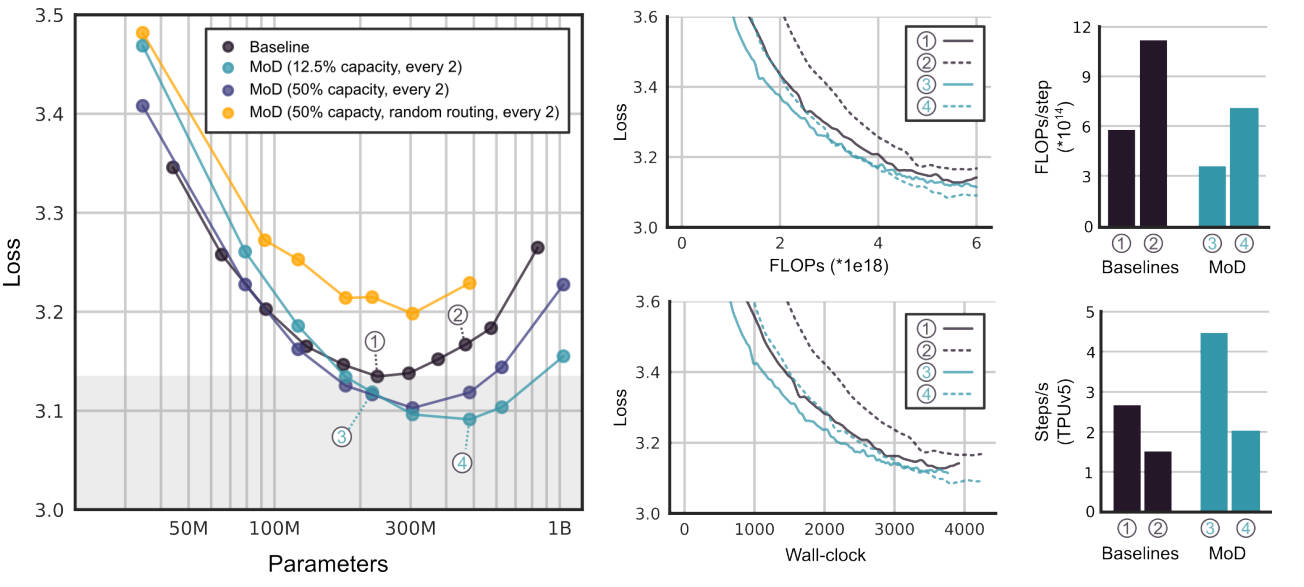

同等参数量下,MoD比baseline要快,同等训练flops和wall-clock下,训练结果相似;(也就是说MoD需要训练更多的iteration)
Every block routing 和 Evary other block routing对比,后者表现更好。
